43inch factory cheap top sales Pcap touch foil Capacitive touchscreen pcap touch foil films super slim
1
What specification of touch foils
DongGuan CJTouch Company Profile
Dongguan CJTouch Electronic Co., Ltd.
CJTOUCH is a leading provider of Touchscreen, Touch monitor and All-in-one computers.
Established in 2006 and headquartered in Dongguan, China,CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and profes
sional technical supports.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
CJTOUCH Certification

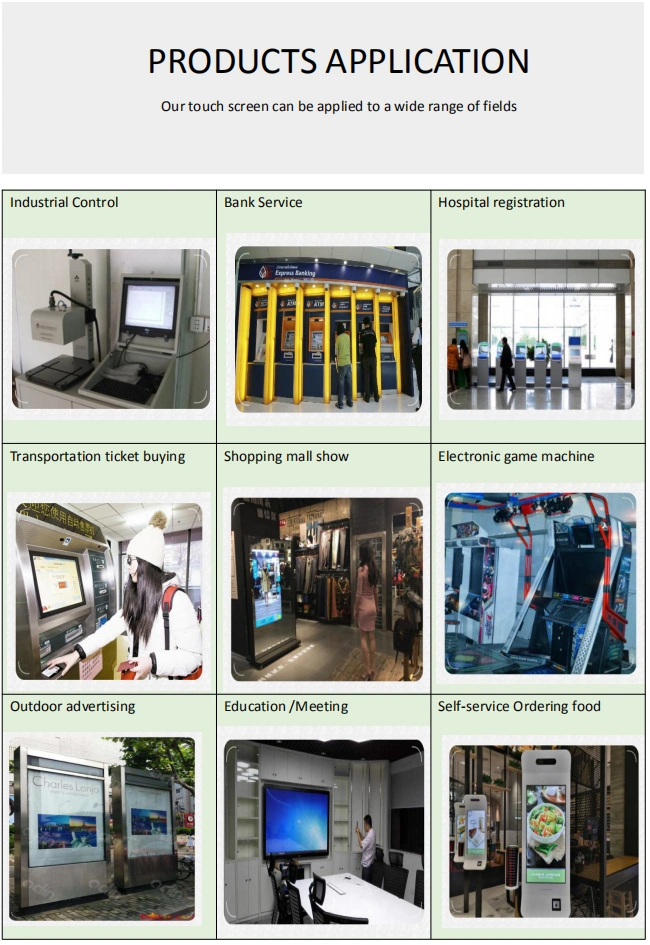

Our touch screen can be applied to thousands of products, if you want to know more, please contact us.
Customer visiting.....

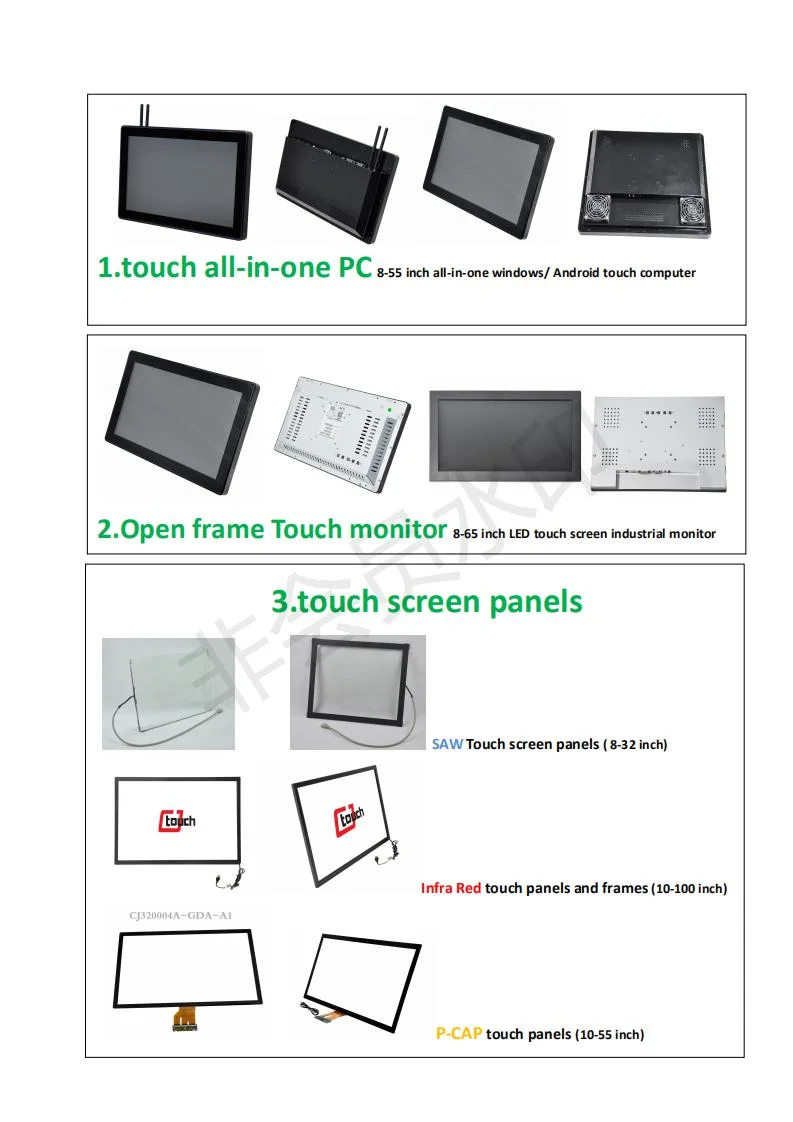

Main products
Contact ways
1
What specification of touch foils
| CJTouch Specifications of Capacitive Touch Foils | |
| Technology | Capacitive Nano Touch Foils / Touch Films |
| Regular Size | 15-120 inch (4:3 / 5:4 / 16:9 / 16:9 /21:9 Screen Ratio Option) |
| Main Characters | Transparent / Frameless / Waterproof / Both 2 sides Touch Workable/ Esay Transpotation /Curved Screen / Screen can be Bent Over |
| Application | Workable with Projector / LCD orLED display /All-in-one Computer/Kiosks |
| Installation | Paste to Windows/Yakeli /Wooden/ Glass/ Mirror/ Plastic/ ,LCD/ LED /Acrylic ect (Non-Metal Involved with Removable Imperial or Permanent Paste) |
| Touch Points | ≤10 Touch Points |
| Foil Thickness | 0.2mm |
| Light Transmission | ≥93% |
| Deviation | ≤2mm (Safe Distance) |
| Drive | Free-Drive |
| Scanning Frequency | 60Hz~130Hz |
| No. Of Sensor | 4224 |
| Power | 0.5W-2W |
| Arm Reject | Support |
| Membrane Thickness | ≤100um |
| Humidity | 0%~95% RH No Condensation |
| IC Chipset | SIS (Taiwan) |
| Foil +Glass Thickness | ≤ 8mm (Sensing Distance) |
| PCB Wire | 80P / 110P / 160P |
| Respond Time | ≤3ms |
| Calibration | Inside Calibration System |
| Scan Velocity | 90p/1ms |
| Sensing Distance | ≤8mm |
| Supply Voltage | 5V USB |
| Output Method | USB2.0; USB3.0; Mini B ; I2C |
| Distance with LCD | 2mm |
| Temperature | -20ºC---70ºC |
| Touch Accurancy | No Drift, the Deviation is about 1~3mm |
| Breaking Point | No Breaking Point when Size < 65 inch |
| Anti-Glare | Outdoor / Indoor Full Strong Sunlight Workable |
| Touch Method | Click and Drag, Amplification, Narrow, Rotation |
| Process | Standard HID-USB Device |
| OS Support | WIN2000/WINXP/WIN7/WIN8/Linux/Mac/Android |
| Certification | CE/ FCC/RoHS/EMC: EN61000-6-1: 2007;EN61000-6-32007+A1:2011 |
| Accessory | Touch Foil + Controller Board + USB Cable |
mechanical Drawing
